Class of Operation: aR
Rating:
Amps: 500~1600A
Volts: 690Vac
Interrupting Rating: 100kA@1000Vdc
Standards/Approvals for Reference:
2IEC 60269/GB 13539 2CE 2RoHS compliant
Description: A range of square body fuses specifically
designed for semiconductor protection.
Cross-section: 73x73mm(size 3)

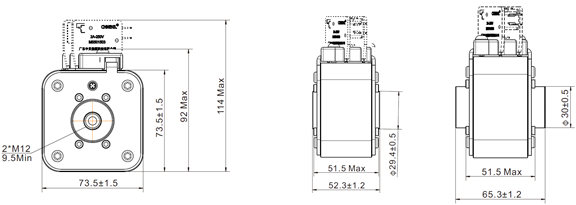

Demensions
Catalogue Numbers
Catalogue Numbers | Electrical Characteristics | Bolt Size | Installation torque (N.m) | |||
Rated Current | I2t (A2Sec) | Watts Loss | ||||
Pre-arc | Clearing at 690V | |||||
*ESH6279 | 500 | 31680 | 259776 | 105 | M12 | 42±4.0 |
*ESH6280 | 550 | 39739 | 325863 | 109 | M12 | 42±4.0 |
*ESH6281 | 630 | 55199 | 452634 | 115 | M12 | 42±4.0 |
*ESH6282 | 700 | 73193 | 600186 | 120 | M12 | 42±4.0 |
*ESH6283 | 800 | 102643 | 841674 | 125 | M12 | 42±4.0 |
*ESH6284 | 900 | 137060 | 1123895 | 135 | M12 | 42±4.0 |
*ESH6285 | 1000 | 170514 | 1398218 | 140 | M12 | 42±4.0 |
*ESH6286 | 1100 | 214157 | 1756086 | 150 | M12 | 42±4.0 |
*ESH6287 | 1250 | 292744 | 2400746 | 160 | M12 | 42±4.0 |
*ESH6288 | 1400 | 357655 | 2932767 | 170 | M12 | 42±4.0 |
*ESH6289 | 1500 | 419747 | 3399953 | 180 | M12 | 42±4.0 |
ESH6290 | 1600 | 522200 | 4264000 | 190 | M12 | 42±4.0 |
